HITRAN line sampling¶

This tutorial shows how to fetch HITRAN/HITEMP line lists, and sample them into cross-section files for use in Pyrat Bay radiative-transfer calculations.

Pyrat Bay has a two-step process to process line lists:

Convert line lists from their original format (HITRAN’s .par files) into transition-line information files (TLI files). This is simple a re-formatting step, the data is still kept as the info per line-transition (wavelengths, gf, Elow, isotope). TLI files can readily be used for Pyrat Bay radiative-transfer calculations, but such runs are slow as the code computes the lines shape and strength on the fly to obtain the cross sections.
Conver TLI files into cross-section tables (saved as Numpy .npz files). This step evaluates (i.e., samples) the line-transition information over a grid of [wavelength, temperature, pressure], which involves computing the line shape and strength of all lines at each given wl, pressure, and temperature value of the grid. Cross-section tables are ideal for radiative-transfer calculations, since the code simply interpolates from them (and therefore, these calculations are fast).

The main issue with cross-section is that they are not too flexible (one might want to change, e.g., the wavelength resolution or line broadening parameters, for which the user would need to re-generate cross-sections from the TLI files). For this reason Pyrat Bay was designed with this two-step approach.

Download data¶

You can find HITRAN and HITEMP line lists from their website:

For this demo, we will get the HITEMP/CO line lists. We can do this with the following prompt commands:

# Download the data
wget https://hitran.org/hitemp/data/bzip2format/05_HITEMP2019.par.bz2

# Unzip the data
bzip2 -d 05_HITEMP2019.par.bz2

Partition functions¶

In addition to the line-list data, we need the partition functions for each molecule and isotope. For this we will use again the data provided by ExoMol and HITRAN TIPS [Gamache2017] [Gamache2021].

This data is already incorporated into the Pyrat Bay package, we only need to generate the partition-function file for CO with the following command:

pbay -pf tips CO

This will produce the PF_tips_CO.dat file, which can be passed as input for the TLI config file.

Compute TLI files¶

The easiest way to generate TLI files is via configuration files and the command line. The tlifile and logfile parameters set the name of the output files. The dblist parameter sets the name(s) of the input HITRAN file(s), along with the dbtype parameter which specifies the format of the input data.

Lastly, the user can specify the wavelength range of the extracted data (see wl_low and wl_high). Normally one want to the widest possible range (to avoid needing to re-calculating TLI files if a future calculation needs it). The config file below converts the HITRAN CO line list:

File: line_sample_hitran_CO_tli.cfg¶

[pyrat]

# Pyrat Bay run mode [tli atmosphere spectrum radeq opacity retrieval]
runmode = tli

# Output log and TLI file (if you ommit `tlifile`, it will be automatically generated from the logfile):
logfile = hitemp_CO_0.3-33.0um.log
tlifile = hitemp_CO_0.3-30.0um.tli

# List of line-transtion databases:
dblist = 05_HITEMP2019.par

# Type of line-transition database, select from: [hitran exomol repack]
dbtype = hitran

# List of partition functions for each database:
pflist = PF_tips_CO.dat

# Wavelength ranges:
wl_low = 0.3 um
wl_high = 30.0 um

# Verbosity level [1--3]:
verb = 2

Note

Note that the partition function is a temperature dependent value, and thus the temperature range of the input partition function sets the minimum and maximum temperature values at which the cross section can be evaluated.

To generate the TLI files, we run these Pyrat Bay prompt commands:

pbay -c line_sample_hitran_CO_tli.cfg

Compute cross-section tables¶

As with TLI files, cross-section files can be generated via configuration files and the command line. The config file below computes a cross-section table (with output name determined by the sampled_cross_sec or logfile parameters).

These parameters define each array of the cross-section table:

The pbottom, ptop, and nlayers parameters define the pressure sampling array
The tmin, tmax, and tstep parameters define the temperature sampling array
The wl_low, wl_high, and resolution parameters define the spectral array at a constant resolution (alternatively, one can replace resolution with wnstep to sample at constant \(\Delta\)wavenumber, units in cm\(^{-1}\))

For the composition (species), make sure to include the molecule for which we are computing the cross-sections. Also, include the background gas, which is relevant for the pressure broadening (here, we assume a H2/He-dominated atmosphere). Only the VMR values of the background gasses are important, trace-gas VMRs are irrelevant (see chemistry or uniform_vmr. tmodel and tpars are needed to define the atmosphere’s temperature profile, but for an opacity run, these do not impact the calculations.

The optional voigt_extent and voigt_cutoff keys set the extent of the profiles wings from the line centers. voigt_extent sets the maximum extent in units of HWHM (default is 300 HWHM). voigt_cutoff sets the maximum extent in wavenumber units of cm^-1 (default is 25.0 cm^-1). For any given profile, the code truncates the line wing at the minimum value of either voigt_extent or voigt_cutoff.

Lastly, the user can set ncpu to speed up the calculations using parallel computing.

File: line_sample_hitran_CO_opacity.cfg¶

[pyrat]

# Pyrat Bay run mode [tli atmosphere spectrum radeq opacity retrieval]
runmode = opacity

# Output log and cross-section file:
# (if you ommit extfile it will be automatically generated from logfile name)
logfile = cross_section_R025K_0150-3000K_0.3-30.0um_hitemp_CO.log

# Input TLI file:
tlifile = hitemp_CO_0.3-30.0um.tli

# Pressure sampling:
pbottom = 100 bar
ptop = 1e-8 bar
nlayers = 51

# Temperature profile (needed, but not relevant for cross-section generation)
tmodel = isothermal
tpars = 1000.0

# A simplified H2/He-dominated composition
chemistry = free
species = H2  He  H2O  CO
uniform_vmr = 0.85 0.15 1e-4 1e-4

# Wavelength sampling
wl_low = 0.3 um
wl_high = 30.0 um
resolution = 25000.0

# Extent of the Voigt profile wings (in HWHM)
voigt_extent = 500.0

# Cross-section temperature sampling:
tmin =  150
tmax = 3000
tstep = 150

# Number of CPUs for parallel processing:
ncpu = 16

# Verbosity level [1--3]:
verb = 2

To generate the cross-section files, run these Pyrat Bay prompt command:

pbay -c line_sample_hitran_CO_opacity.cfg

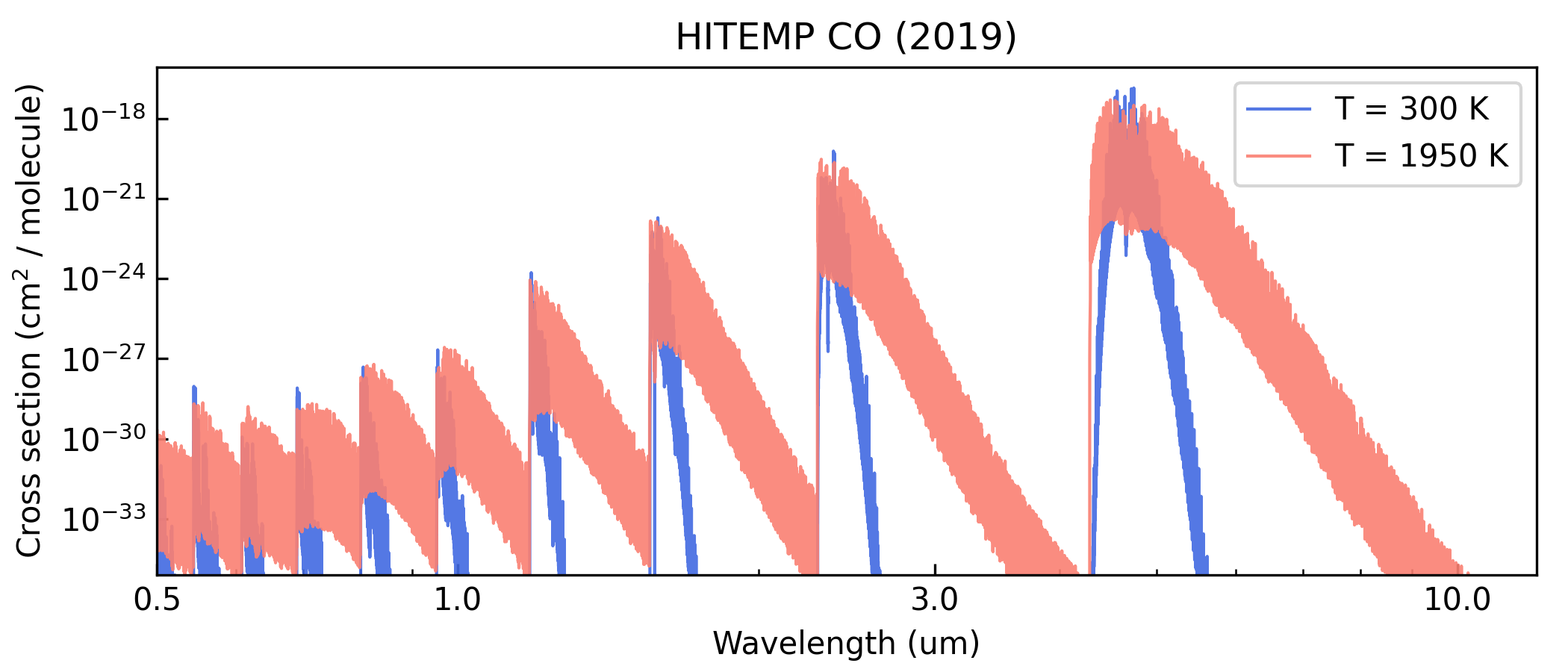

Here’s a Python script to take a look at the output cross section:

import pyratbay.io as io
import matplotlib
import matplotlib.pyplot as plt

cs_file = 'cross_section_R025K_0150-3000K_0.3-30.0um_hitemp_CO.npz'
units, mol, temp, press, wn, cross_section = io.read_opacity(cs_file)

p = 35
wl = 1e4/wn
colors = 'royalblue', 'salmon'

fig = plt.figure(0)
plt.clf()
fig.set_size_inches(7, 3)
plt.subplots_adjust(0.1, 0.145, 0.98, 0.9)
ax = plt.subplot(111)
for i,t in enumerate([1,12]):
    label = f'T = {temp[t]:.0f} K'
    plt.plot(
        wl, cross_section[t,p], lw=1.0,
        color=colors[i], alpha=0.9, label=label,
    )
plt.xscale('log')
plt.yscale('log')
ax.xaxis.set_minor_formatter(matplotlib.ticker.NullFormatter())
ax.xaxis.set_major_formatter(matplotlib.ticker.ScalarFormatter())
ax.set_xticks([0.5, 1.0, 3.0, 10.0])
plt.xlim(0.5, 12.0)
plt.ylim(1e-35, 1e-16)
plt.title('HITEMP CO (2019)')
plt.xlabel('Wavelength (um)')
plt.ylabel(r'Cross section (cm$^{2}$ / molecule)')
plt.legend(loc='upper right')
ax.tick_params(which='both', direction='in')
